PBR Material Shaders

PBR Material Shaders define surface appearance using physically-based rendering principles. These shaders can simulate materials ranging from simple diffuse surfaces to complex materials with clear coat, fabric sheen, and anisotropic reflections.

3dverse provides two variants of the default PBR material shader:

Opaque

PBR Opaque Uber Material

Asset UUID:

Transparent

PBR Transparent Uber Material

Asset UUID:

Material Features

Base

Albedo, roughness, metallic, emission.

Clear Coat

Secondary reflective layer.

Triplanar

Texture projection.

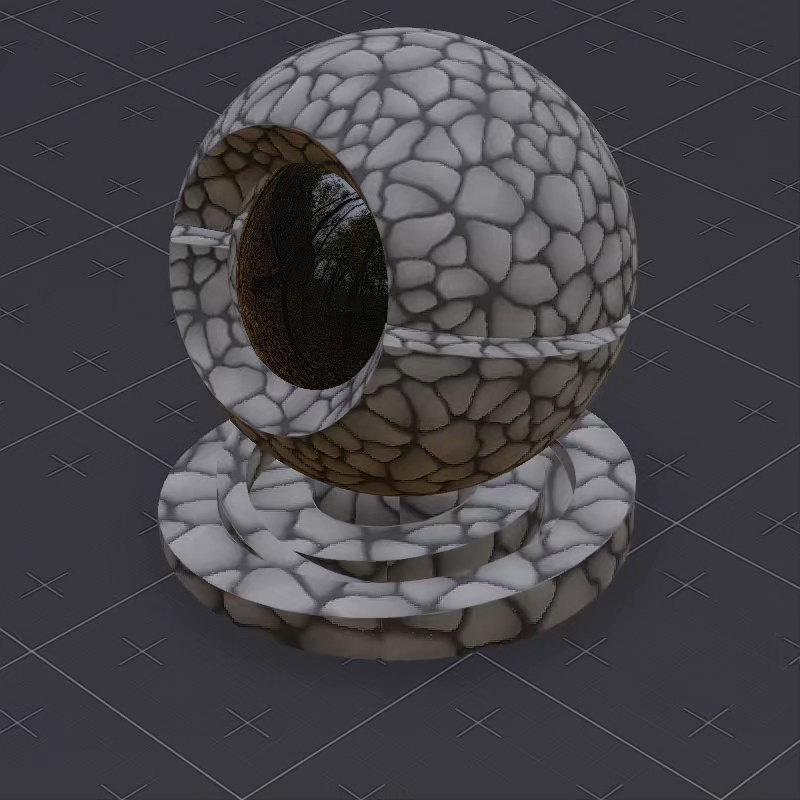

Parallax

Height-based displacement.

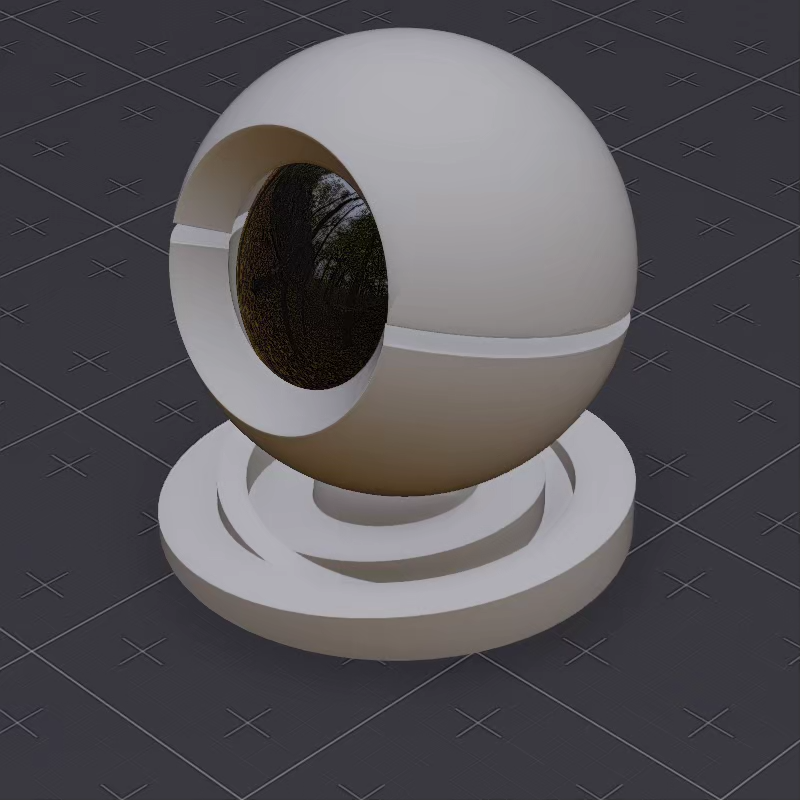

Sheen

Fabric rim lighting.

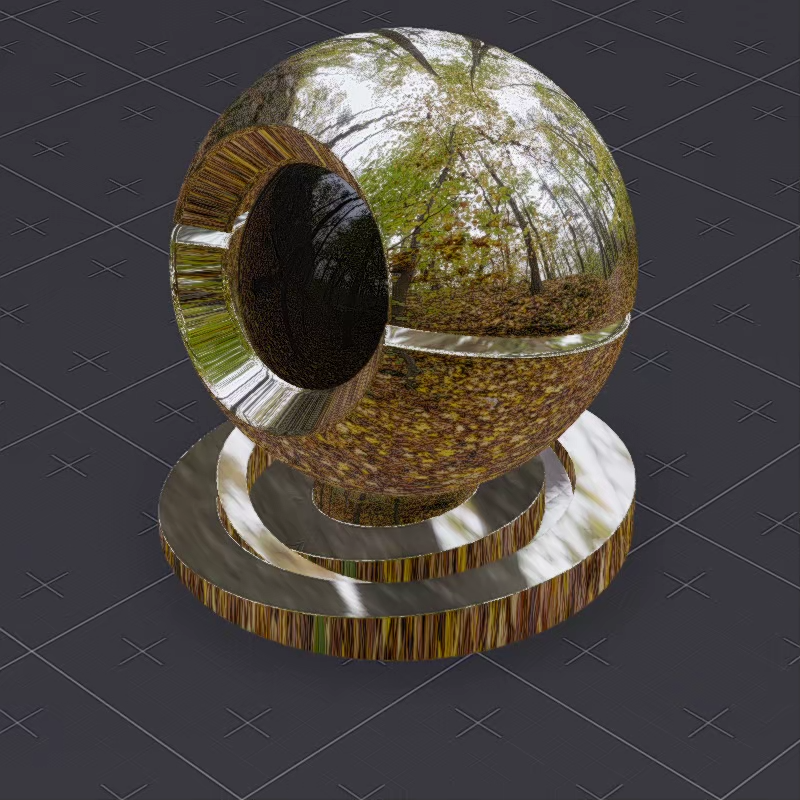

Anisotropy

Directional reflection.

Feature Constants

Constant	Description	Use Case
MATERIAL_TRANSPARENT	Transparency and refraction	Glass, water
MATERIAL_CLEAR_COAT	Glossy coating layer	Car paint, varnished wood
MATERIAL_SHEEN	Fabric rim highlights	Cloth, velvet, satin
MATERIAL_ANISOTROPY	Directional reflections	Brushed metal, hair
VERTEX_SKINNED	Skeletal animation	Animated characters
MATERIAL_TRIPLANAR	Three-axis texture projection	Terrain, rocks without UVs
MATERIAL_UNTEXTURED	No texture sampling	Solid colors
MATERIAL_NO_DECALS	Prevent decal application	Special surfaces
MATERIAL_PARALLAX	Height-based displacement	Brick walls, cobblestones

Parameters

Base

Albedo

• albedo

  vec3

  Base color of the material

• albedoTexture

  texture2d_ref

  Texture map for base color

  MATERIAL_UNTEXTURED

Reflectivity

• metallic

  float

  Metallic appearance (0 = non-metallic/dielectric, 1 = metallic)

• metallicTexture

  texture2d_ref

  Texture map for metallic property

  MATERIAL_UNTEXTURED

• roughness

  float

  Microscopic surface roughness (0 = smooth mirror, 1 = rough diffuse)

• roughnessTexture

  texture2d_ref

  Texture map for surface roughness

  MATERIAL_UNTEXTURED

Ambient Occlusion

• ambientOcclusion

  float

  Intensity of ambient lighting on surface

• ambientOcclusionTexture

  texture2d_ref

  Texture map for ambient occlusion

  MATERIAL_UNTEXTURED

Emissive

• emission

  vec3

  Light emitted by surface

• emissionIntensity

  float

  Multiplier for emission brightness

• emissionTexture

  texture2d_ref

  Texture map for emissive areas

  MATERIAL_UNTEXTURED

Normals

• flipNormalTextureBlueChannel

  int32_t

  Blue channel inversion for normal map format compatibility

  MATERIAL_UNTEXTURED

• flipNormalTextureGreenChannel

  int32_t

  Green channel inversion for normal map format compatibility

  MATERIAL_UNTEXTURED

• normalTexture

  texture2d_ref

  Normal map for surface detail and bump mapping

  MATERIAL_UNTEXTURED

UVs

• offset

  vec2

  UV texture offset for positioning

  MATERIAL_UNTEXTURED

• scale

  vec2

  UV texture tiling scale

  MATERIAL_UNTEXTURED

Opacity

• indexOfRefraction

  float

  Light refraction amount for transparent materials (1.5 for glass)

  MATERIAL_TRANSPARENT

• opacity

  float

  Opacity level for transparent materials

  MATERIAL_TRANSPARENT

• opacityTexture

  texture2d_ref

  Texture map for transparency

  MATERIAL_TRANSPARENT

  MATERIAL_UNTEXTURED

Clear Coat

• clearCoatNormalTexture

  texture2d_ref

  Normal map for clear coat layer

  MATERIAL_CLEAR_COAT

  MATERIAL_UNTEXTURED

• clearCoatRoughnessTexture

  texture2d_ref

  Roughness texture for clear coat layer

  MATERIAL_CLEAR_COAT

  MATERIAL_UNTEXTURED

• clearCoatRoughness

  float

  Roughness of clear coat layer

  MATERIAL_CLEAR_COAT

• clearCoatNormalTexScale

  float

  Clear coat normal map tiling scale

  MATERIAL_CLEAR_COAT

  MATERIAL_UNTEXTURED

• clearCoatStrength

  float

  Strength of coating layer effect

  MATERIAL_CLEAR_COAT

Triplanar

• sharpness

  float

  Transition hardness between projection axes

  MATERIAL_TRIPLANAR

  MATERIAL_UNTEXTURED

• rotationDeg

  vec3

  Texture rotation angle for each projection axis

  MATERIAL_TRIPLANAR

  MATERIAL_UNTEXTURED

• triplanarBlendMode

  int32_t

  Blending mode for combining triplanar projections

  MATERIAL_TRIPLANAR

  MATERIAL_UNTEXTURED

• triplanarParallax

  int32_t

  Parallax mapping toggle for triplanar projection

  MATERIAL_TRIPLANAR

  MATERIAL_UNTEXTURED

• triplanarUseLocalSpace

  int32_t

  Space mode for triplanar projection (world or local)

  MATERIAL_TRIPLANAR

  MATERIAL_UNTEXTURED

Parallax

• heightMapScale

  float

  Depth scale for parallax displacement effect

  MATERIAL_PARALLAX

  MATERIAL_UNTEXTURED

• heightMapTexture

  texture2d_ref

  Height map texture for parallax mapping

  MATERIAL_PARALLAX

  MATERIAL_UNTEXTURED

Sheen

• sheenColor

  vec3

  Color of fabric-like sheen reflection

  MATERIAL_SHEEN

• sheenColorIntensity

  float

  Strength of sheen color effect

  MATERIAL_SHEEN

• sheenColorTexture

  texture2d_ref

  Texture map for sheen color

  MATERIAL_SHEEN

  MATERIAL_UNTEXTURED

• sheenRoughness

  float

  Roughness of sheen reflection layer

  MATERIAL_SHEEN

• sheenRoughnessTexture

  texture2d_ref

  Texture map for sheen roughness

  MATERIAL_SHEEN

Anisotropy

• anisotropyStrength

  float

  Strength of directional reflection (for brushed metal)

  MATERIAL_ANISOTROPY

• anisotropyRotation

  float

  Rotation angle of anisotropic highlight direction

  MATERIAL_ANISOTROPY

• anisotropyTexture

  texture2d_ref

  Texture map for anisotropic properties

  MATERIAL_ANISOTROPY

  MATERIAL_UNTEXTURED

Textures

• Texture samples are multiplied by their corresponding parameters (final value = parameter × texture sample)
• AO (red), roughness (green), metallic (blue) can be packed in a single RGB texture
